US 5 suspended support FTK, black 400 | melns; RAL 9005

US 5 suspended support FTK, black

Preces Nr. 6341684 | EAN 4012197468736

Preces Nr. / Tips

Garums

Krāsa	melns; RAL 9005

Produkta apraksts

Produkta apraksts

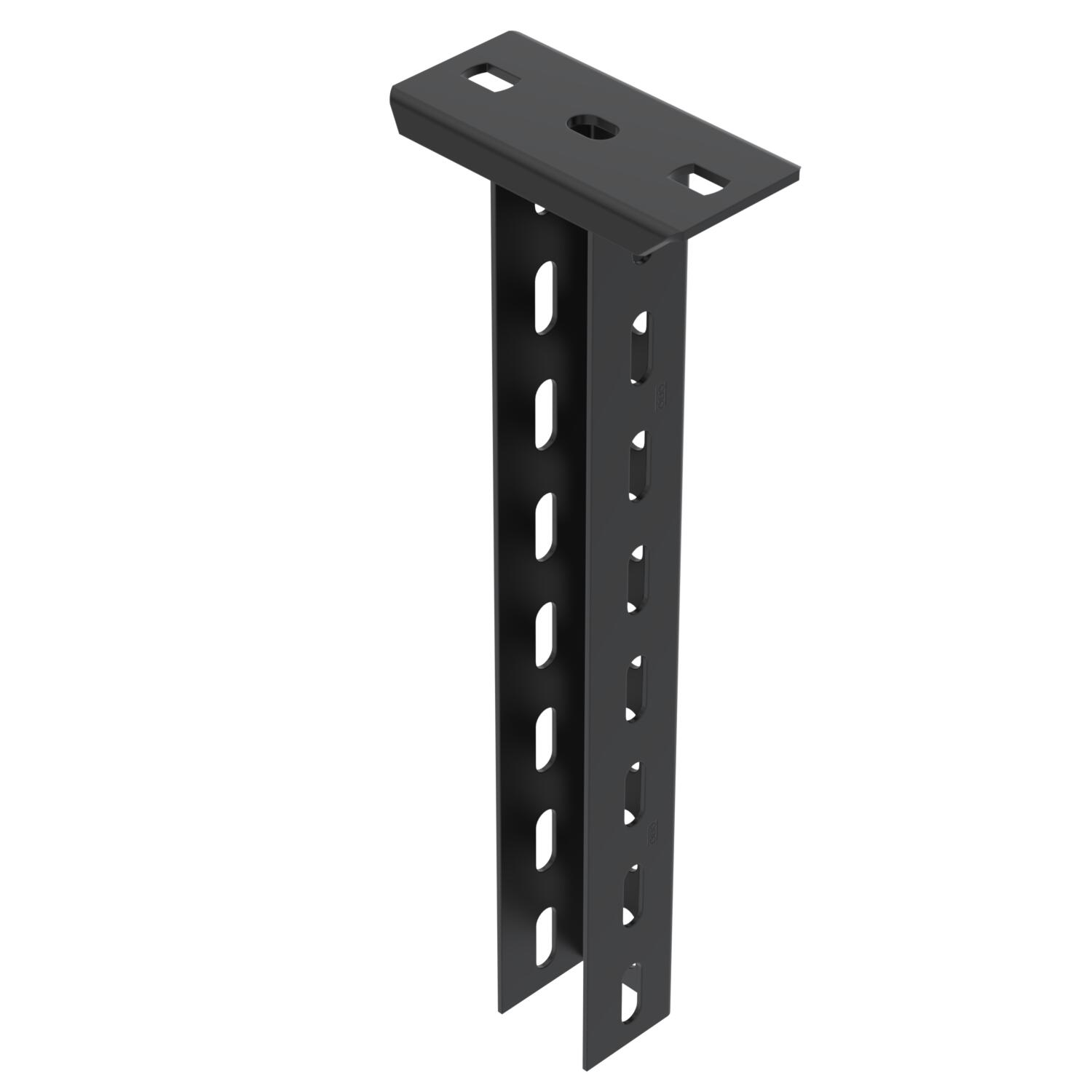

Suspended support made from U profile with welded-on head plate, perforated to 3 sides, for the creation of support constructions for cable trays. Suitable for mounting on horizontal concrete ceilings and steel supports. Wall and support bracket can be mounted on both sides of the U suspended support. Spacer DSK to insert, from bracket width 400 mm or when mounting the bracket on the end of the suspended support. With black powder coating.

Tehniskie dati

Tehniskie dati

Ar zobiem	nē
Balsteņa garums 200	5,75 kN
Balsteņa garums 400	3,1 kN
Balsteņa garums 600	2,2 kN
Funkciju nodrošināšana	jā
Izmērs	50x50x400

Izpildījums	U veida profils
Krāsa	melns; RAL 9005
maksimālā vilces slodze	10 kN
Materiāla biezums	2,5 mm
Materiāls	Tērauds
Virsma	PES135 – poliesters

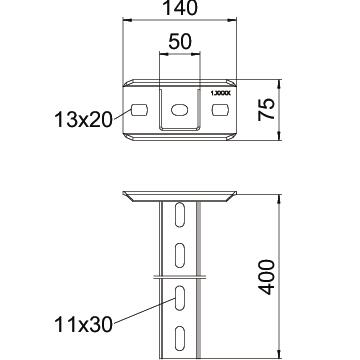

Izmēri

Augstums	50 mm
Garums	400 mm

Izmērs L	400 mm
Platums	50 mm

Visi tipi

Visi tipi

Tips	Garums	Krāsa	Preces Nr.	Daudzums	mazākā pārd. vien.
US 3 K 20 FTK SW	200 mm	melns; RAL 9005	7265690	Gabals	1 Gabals
US 3 K 30 FTK SW	300 mm	melns; RAL 9005	7265693	Gabals	1 Gabals
US 3 K 40 FTK SW	400 mm	melns; RAL 9005	7265696	Gabals	1 Gabals
US 3 K 50 FTK SW	500 mm	melns; RAL 9005	7265740	Gabals	1 Gabals
US 5 K 40 FTK SW	400 mm	melns; RAL 9005	6341684	Gabals	1 Gabals
US 5 K 60 FTK SW	600 mm	melns; RAL 9005	6341686	Gabals	1 Gabals
